SPECIFICATII

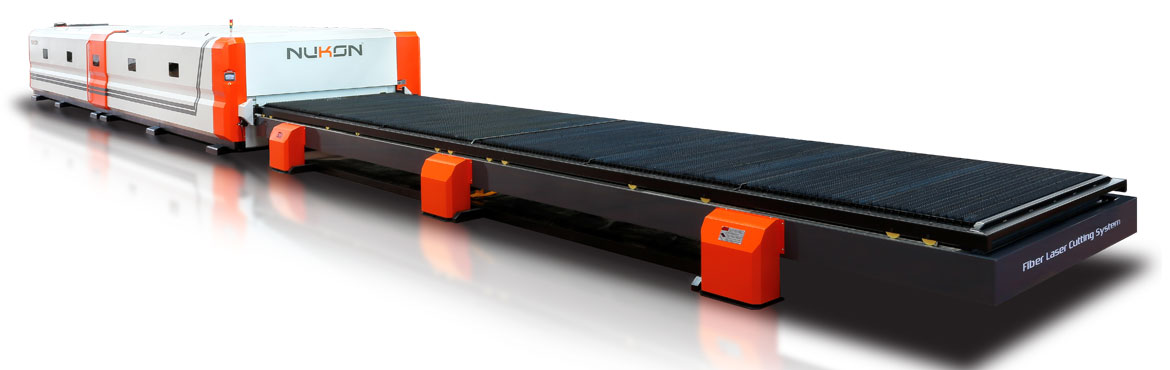

NF PRO 25125

2530mm x 12550mm
Masă schimbătoare automată dublă

SPECIFICATII ECHIPAMENT

SPECIFICATII ECHIPAMENT

SUBIECT		CARACTERISTICI
Modelul mașinii		NF PRO-25125
Tip		Flying Optic Head
Cap de tăiere		Auto-Focus Head
Dimensiuni		2530×12550 mm / 8.3×41.10 ft
Resonator		2 kw	3 kw	4 kw	5 kw	6 kw
Diametrul fibrei laser		100 µm / 004″	100 µm / 004″	100 µm / 004″	100 µm / 004″	100 µm / 004″
Capacitate Tăiere maximă	Oțel moale	16 mm / .625″	18 mm / .709″	20 mm / .78″	22 mm / .86″	25 mm / .98″
	Oțel inoxidabil	6 mm / .236″	10 mm / .394″	12 mm / .47″	15 mm / .59″	18 mm / .709″
	Aluminiu	5 mm / .19″	8 mm / .315″	10 mm / .393″	12 mm / .47″	15 mm / .59″
	Alamă	3 mm / .118″	5 mm / .197″	6 mm / .236″	8 mm / .314″	10 mm / .393″
	Cupru	3 mm / .118″	5 mm / .197″	6 mm / .236″	8 mm / .314″	8 mm / .314″
Consum de energie 380-400v / 3PH (Avialable in 220v / 3PH)+-10%		24 kw	29 kw	37 kw	50 kw	57 kw
Înălțimea mesei de lucru		900 mm / 35,5″
Capacitate maximă de încărcare		12.500 kg / 27557 lbs
Axes	X-Axis	12550 mm / 41.10 ft
	Y-Ekseni	2530 mm / 8.3 ft
	Z-Ekseni	150 mm / 5.90″
Mișcarea axei		4 Axes Digital Motor System
Sistem de poziționare System		Servo Motor
Accelerare		7 m/s²
Axes Speed (X,Y Simultaneous Speed)		80 m/min
Precizia poziționării		± 0.05 mm / ± 0.002″
Repetabilitate		± 0.02 mm / ± 0.0007″
Shuttle Table Changing Time		115 sn
Controlor		19″ Multi Touch Screen, Ethernet Enabled
Asistați controlul alegerii gazului		Oxygen (O2) : 15 Bar Nitrogen (N2) : 25 Bar Dry Air : 25 Bar
Greutatea mașinii		55.000 KG / 121.254 lbs

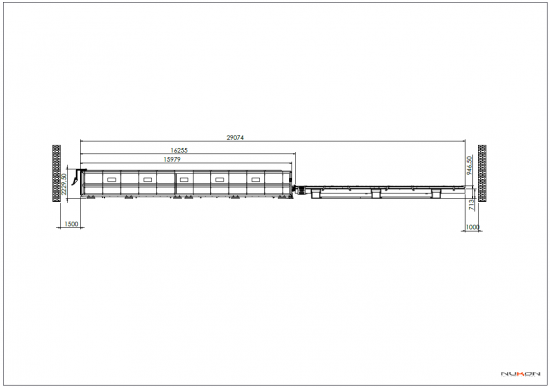

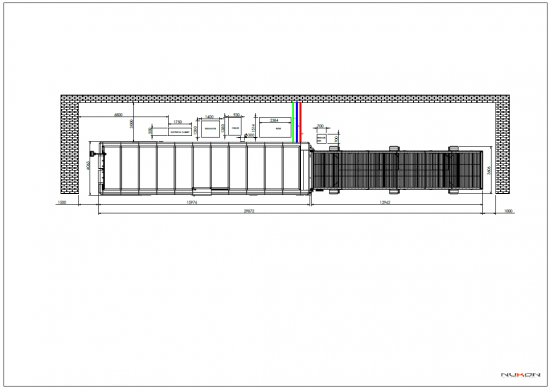

LAYOUT
